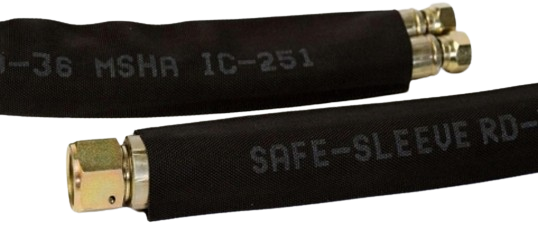

UNIQUE NYLON (PA) SLEEVE

Unique nylon (Polyamide) sleeves are made from best quality special fiber, which protect the persons standing near the machinery from hydraulic hose ruptures and pinhole leaks, it is also useful for organizing a bunch of wires and cables and many more.

PROPERTIES

High strength and flexible

Good abrasion and wear resistance up to >200 000 cycles
Good chemical resistance to heat, oil, grease, gasoline, and other chemicals

Good electrical insulation
Withstand Temperature range -40 °C to +120 °C

Available in 50 m rolls and pre-cut lengths.

Sl.No.	Flat	Inner Dia
1	30	17
2	35	20
3	40	23
4	45	27
5	50	30
6	55	33
7	60	36
8	65	39

Sl.No.	Flat	Inner dia.
9	75	46
10	90	55
11	100	62
12	110	68
13	125	78
14	135	85
15	175	109
16	200	125

OD	ID	WALL	WIDTH
mm	mm	mm	m
20	17	1.5	27
25	22	1.5	27
30	27	1.5	27
35	32	1.5	27
40	36	1.5	30
45	39	1.5	30
50	46	1.5	30
55	51	1.5	30

OD	ID	WALL	WIDTH
mm	mm	mm	m
20	17	1.5	27
25	22	1.5	27
30	27	1.5	27
35	32	1.5	27
40	36	1.5	30
45	39	1.5	30
50	46	1.5	30
55	51	1.5	30

OD	ID	WALL	WIDTH
mm	mm	mm	m
20	17	1.5	27
25	22	1.5	27
30	27	1.5	27
35	32	1.5	27
40	36	1.5	30
45	39	1.5	30
50	46	1.5	30
55	51	1.5	30

OD	ID	WALL	WIDTH
mm	mm	mm	m
20	17	1.5	27
25	22	1.5	27
30	27	1.5	27
35	32	1.5	27
40	36	1.5	30
45	39	1.5	30
50	46	1.5	30
55	51	1.5	30
